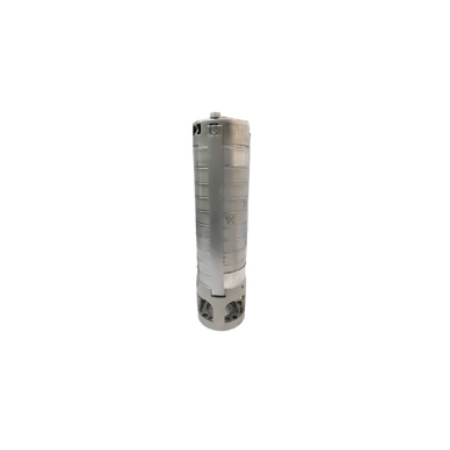

Multi-stage submersible pump for raw water supply, groundwater lowering and pressure boosting. The pump is suitable for pumping clean, thin, non-aggressive liquids without solid particles or fibers.
Liquid:
Pumped liquid: Water Liquid max temp: 60 øC
Selected liquid temperature: 20 øC
Density: 998.2 kg/m3
Technical:
Pump speed on which pump data are based: 3450 rpm
Rated flow: 6 m3/h
Rated head: 172 m
Actual impeller diameter: 72.9 mm
Curve tolerance: ISO9906:2012 3B
Specification for shaft end: SPLINE
Materials:
Pump: Stainless steel
EN 1.4301
AISI 304
Impeller: Stainless steel
EN 1.4301
AISI 304
Installation:
Pump outlet: 1 1/2"NPT
Motor diameter: 4 inch
Electrical data:
Rated power - P2: 4 kW
Power (P2) required by pump: 4 kW
Start. method: direct-on-line
Others:
DOE Pump Energy Index CL: 0.93
ErP status: EuP Standalone/Prod.
Net weight: 7.3 kg
Gross weight: 8.2 kg
Shipping volume: 0.016 m3
