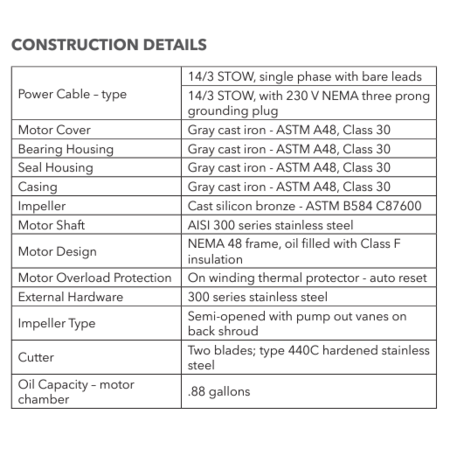

Features
Design: Capable of grinding domestic sewage and individual residential applications.
Cutter system: Anti-roping design. Two blade rotary cutter is threaded to shaft. Stationary cutter ring is reversible for extended service.
Impeller: Silicon bronze semi-open, Non overloading two-vane design with pump-out vanes for mechanical seal protection. Balanced for smooth operation.
Casing: cast-iron, volute type for high efficiency. Adaptable for guide rail system.
Motor: fully submerged in oil-filled chamber. High grade turbine oil surrounds motor for more efficient heat dissipation, permanent lubrication of bearings and mechanical seal, and protection against outside environment.
Motor shaft: 300 series stainless steel, short overhang for minimum shaft deflection.
Designed for continuous operation: Pump ratings are within the motor manufacturers recommended working limits, can be operated continuously without damage when fully submerged.
Bearings: Upper and lower ball bearings for precision positioning of parts and to carry all radial and thrust loads.
Mechanical Seal: Hardfaced Silicon carbide for longer life, stainless steel metal parts, BUNA-N elastomers.
Power Cable: Severe duty rated, oil and water resistant. Epoxy seal on motor end provides secondary moisture barrier in case of outer jacket damage and to prevent oil wicking.
O-Ring: Assures positive sealing against contaminants and oil leakage.
Paint: Electro-coat paint process protects all casting surfaces.
May be used with optional guide rail.

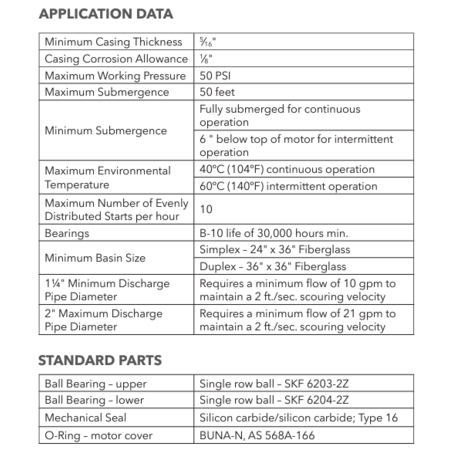

SPECIFICATIONS
Pump:

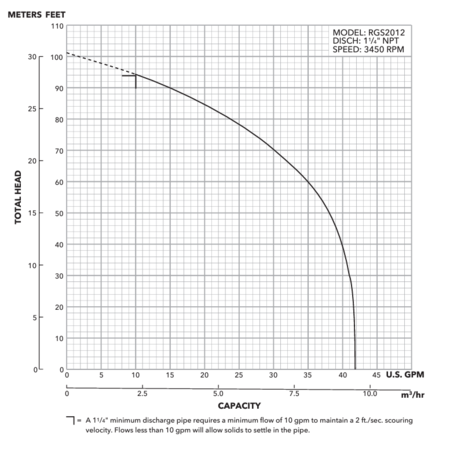

- Capacities: to 41 GPM
- Total heads: to 95' TDH
- Discharge: 1 1⁄4" NPT
- Temperature: 104ºF (40ºC) maximum continuous,140ºF (60ºC) maximum intermittent
- Single mechanical seal: silicon carbide rotary/silicon carbide stationary, 300 series stainless steel metal parts, BUNA-N elastomers
- Fasteners: 300 series stainless steel
- Rotating cutter and cutter ring: 440 C hardened stainless steel
MOTOR:
- Single phase: 2 HP, 60 Hz, 3450 RPM, 208/230 V, capacitor start with on winding thermal protector. No external capacitor kits required.
- Class F insulation
- Shaft: 300 series stainless steel threaded design
- Bearings: ball bearings upper and lower
Power Cord with bare lead ends:
- Use for connections in a control panel or junction box
- Standard length 20', 14/3 STOW
- Optional lengths of 30',50' and 100'
